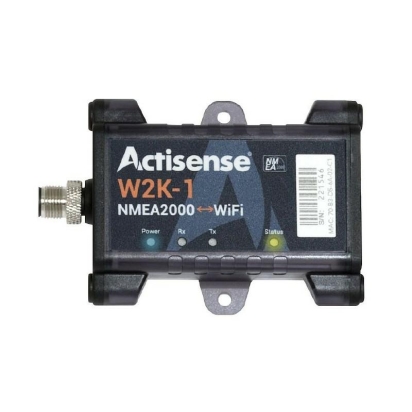

NMEA2000® to Wi-Fi Gateway

De W2K-1 is een robuuste en betrouwbare NMEA2000 naar Wi-Fi Gateway met ingebouwde datalogger en Actisense-i diagnostische tools.
Draag gegevens over van een NMEA 2000 backbone naar elk apparaat (bijv. laptop, tablet of smartphone) dat is aangesloten op de W2K-1 via Wi-Fi en converteer deze gegevens bovendien naar NMEA0183 met behulp van Actisense's gerenommeerde conversie engine. Actisense-i is een suite van diagnostische tools en health checker voor uw netwerk.

Features
Converts NMEA 2000 to/from NMEA 0183 (streamed over Wi-Fi)
Supports both TCP and UDP, streams data using up to three separate data servers
Data protocols are selectable to be compatible with a huge range of navigation software and apps
Approximately 16 days of Voyage data recording (upgradable)
Diagnostic LEDs for NMEA 2000 bus activity and Wi-Fi Status
Works as an access point and client simultaneously
Remote Firmware upgradability
Low power- 2 LEN (100 mA)
Supports 802.11 b/g/h (up to 150Mbps)
Automatically measures and reports the NMEA 2000 bus voltage
User Manual embedded on the device, easily accessible via browser
Each device has unique default SSID and Password for enhanced security
Actisense-i diagnostic tools

Benefits
Two-in-one NMEA 2000 to Wi-Fi Gateway and data logger
Enables use of mobile devices and laptops without the hassle of a physical connection
Allows compatibility with a wide range of NMEA 2000 & NMEA 0183 applications
Ruggedised IP67 casing suitable for wet and harsh environments
Works out of the box with pre-installed industrial grade SD card
Integrated antenna has less chance of physical damage
Quick and easy to install
